Locker selection in Shopify checkout (without Shopify Plus)

Overview

Shopify only allows checkout UI customization on Shopify Plus. Because of this, a locker map cannot be embedded in the standard checkout.

xConnector provides an additional option by showing a short list of nearby lockers (not a map). The list is generated from the address entered at checkout: the service computes an area around the address and returns the closest lockers.

When a locker is selected, xConnector saves it on the order as the chosen delivery method.

How it works

• Customers enters the shipping address at checkout.
• xConnector calculates nearby lockers and returns a short list.
• The list is displayed in checkout for selection.
• The selected locker is saved on the order in xConnector.

Note: This approach creates one unique shipping method for lockers. Unlike the older V03 map approach, it cannot be split or filtered into multiple locker-specific methods.

Setup

Step 1 — Enable locker list in checkout

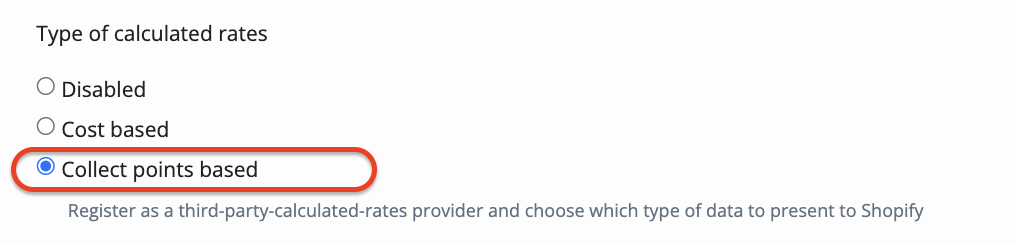

1. Go to xConnector → Profile → Preferences → Type of calculated rates.

2. Select Collect points based.

3. Save.

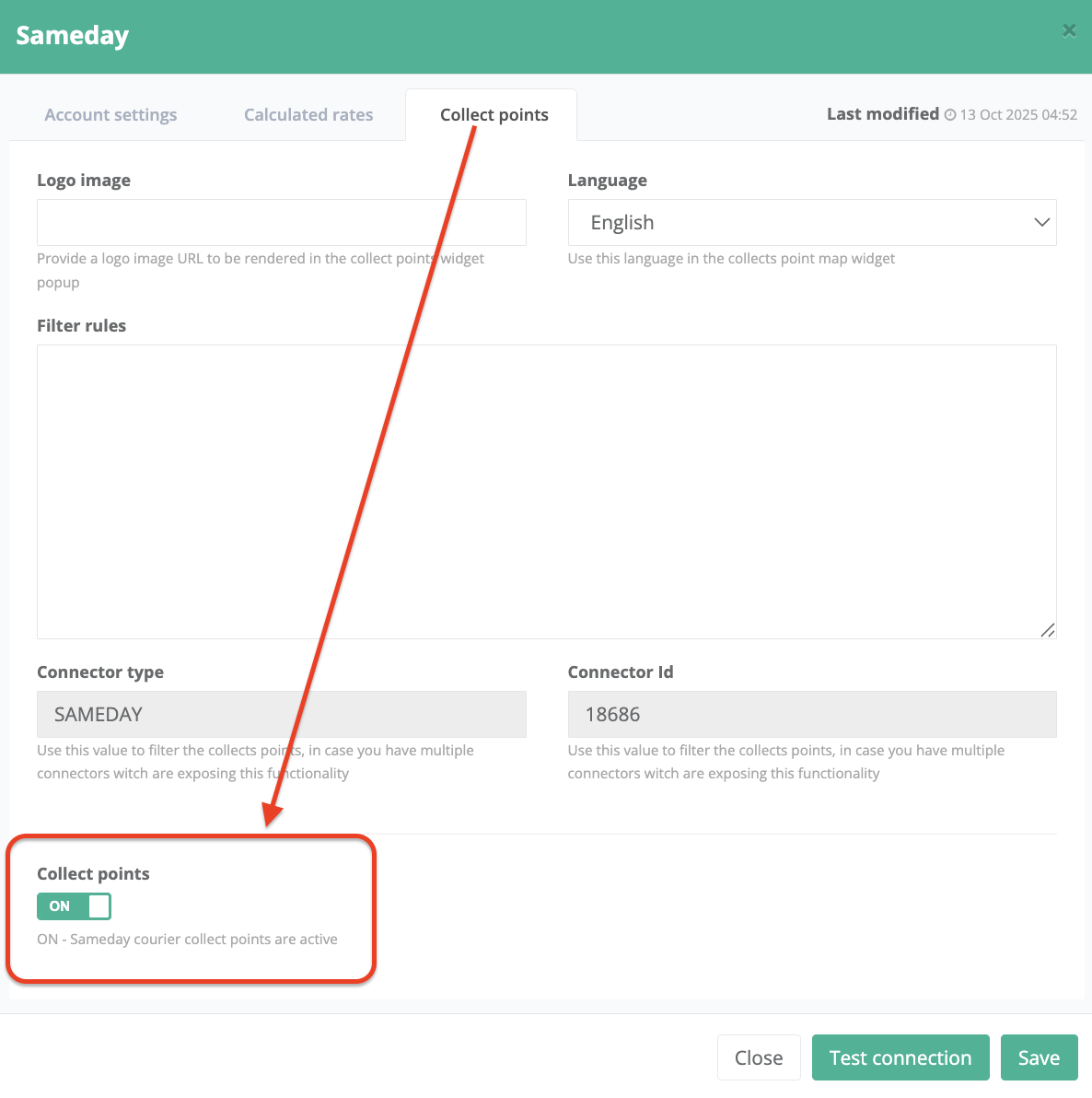

Step 2 — Activate locker function (Collect points ON)

1. Go to xConnector → Profile → Connected services.

2. Click your Courier.

3. Open Collect point and switch Collect points = ON.

4. Save.

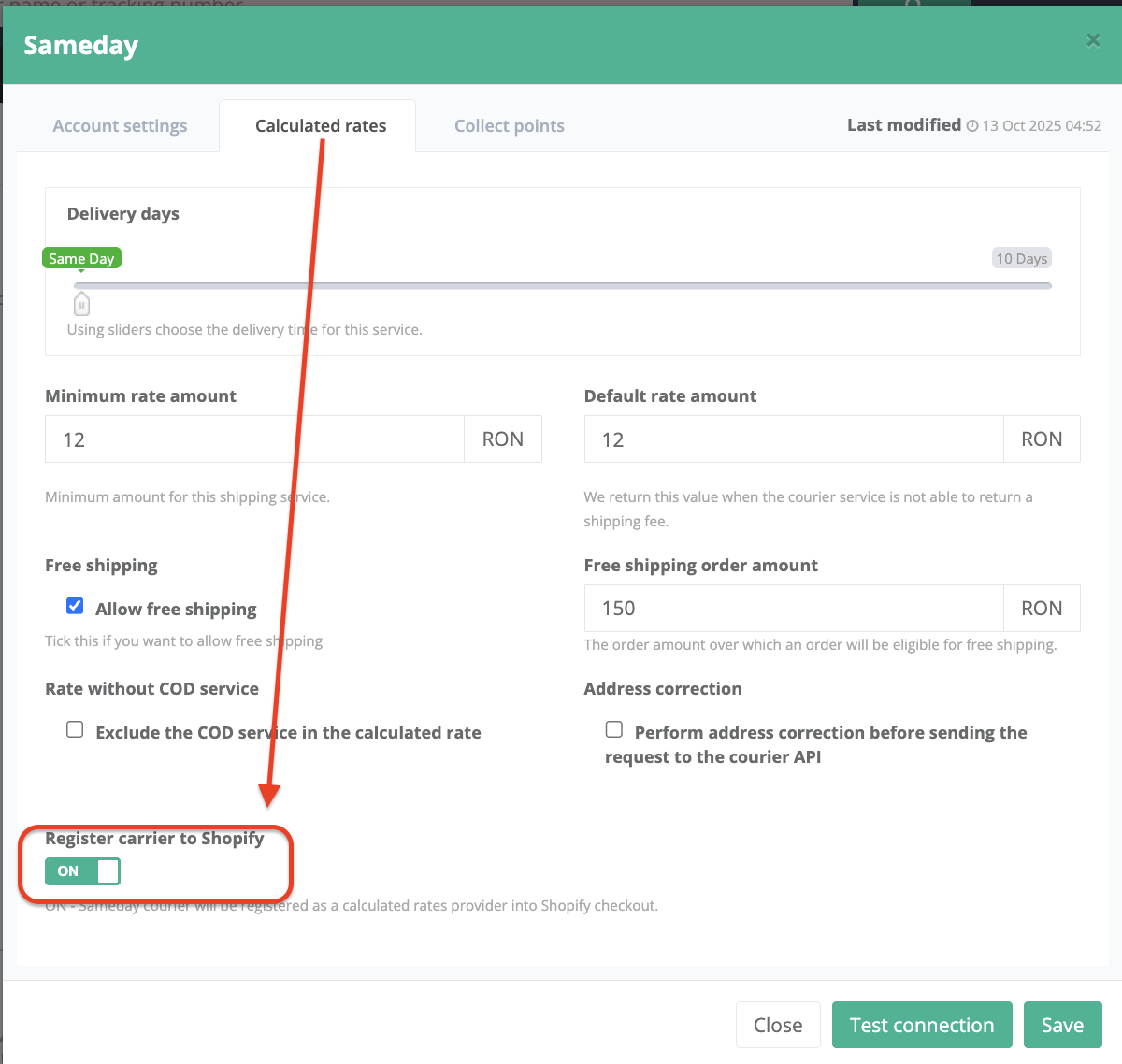

Step 3 — Define shipping costs

1. Go to xConnector → Profile → Connected services.

2. Click your Courier → Calculated rates.

3. Open Calculates rates and switch Calculates rated = ON.

4. Enter the shipping costs (Minimum rate amount, Default rate amount, Allow or not the Free Shipping)

5. Save.

If you previously used the V03 locker map

Remove legacy map components from Shopify to avoid conflicts:

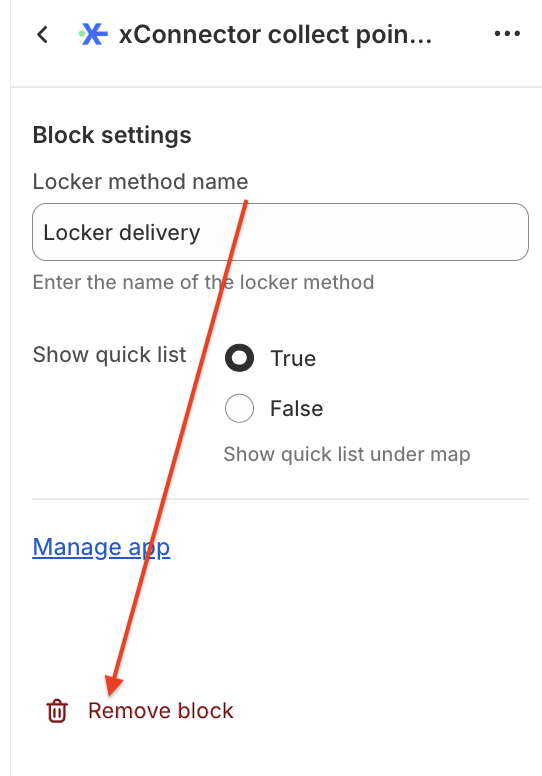

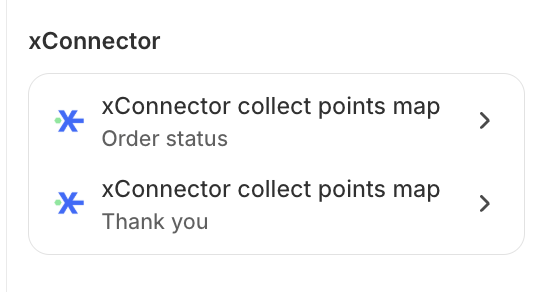

1. In Shopify → Settings → Checkout → Extensions, remove the locker Thank you page and Order status page extensions.Click on each block and than Remove

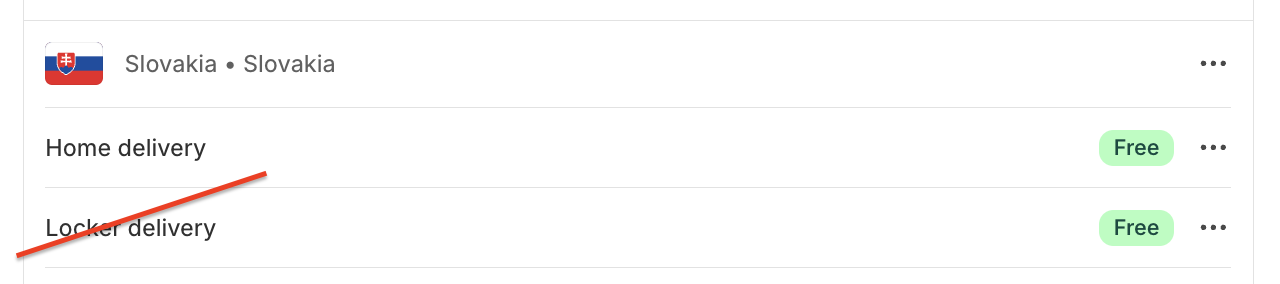

2. In Shopify → Settings → Shipping and delivery, remove the old locker shipping method.

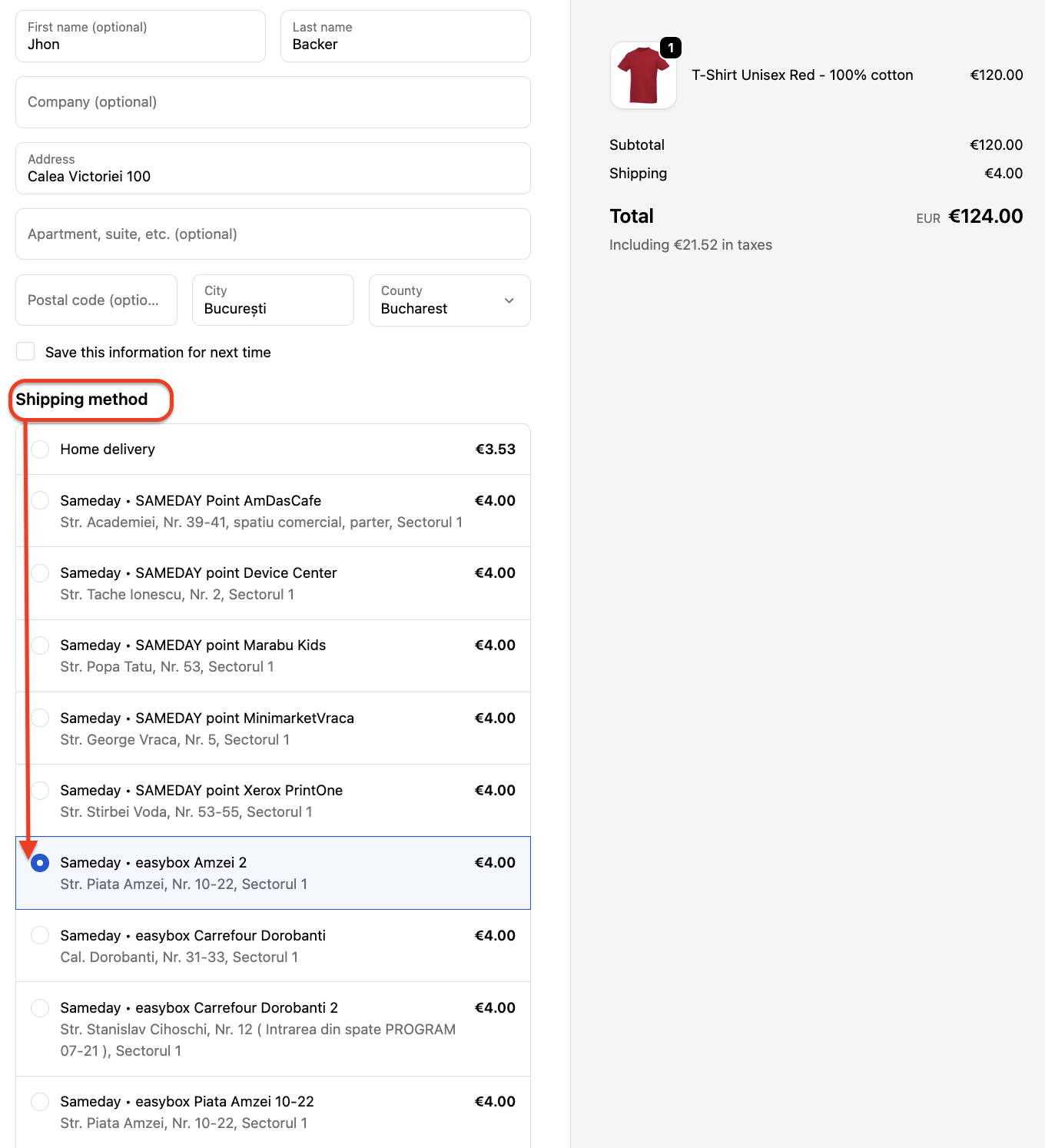

As a result: in Shopify - Checkout the customer can select their desired locker at the Shipping method

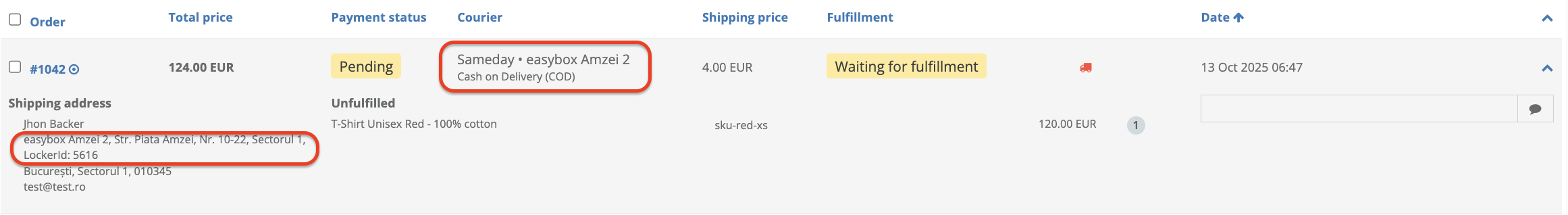

In xConnector the Courier = the locker name

In xConnector the Shipping carrier Filter is now = the locker name
Unlike before—when only two delivery methods were shown (to locker and to address), as configured in Shopify → Shipping and delivery—now the Shipping carrier filter lists one item per selected locker.

Notes & limitations

• This solution works on non–Shopify Plus stores because it does not require custom checkout UI blocks.

• The list is based on the checkout shipping address and shows only the closest lockers.
• in xConnector - shipping method is exposed by the selected locker. Filtering by locker delivery as a general shipping method is no longer possible for this current method

Troubleshooting

• No lockers appear: verify the shipping address is complete and the courier supports lockers for that region.
• Rates not showing: check that Calculated rates are configured for the courier and that Collect points based is selected in Preferences.
• Old map still showing: remove all V03 map extensions and the old locker shipping method as described above, then save and test again.

This feature is available for the Enterprise plan in xConnector
